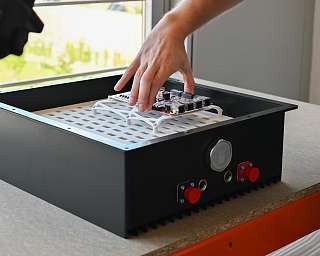

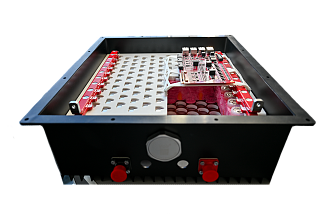

EFT-Battery-1x
The EFT-Battery-1x is a modular, turn-key battery platform for advanced mobility applications (off-road, boats, motorcycle, utility vehicles).
The battery module comes fully integrated with all relevant electronics (BMS, IMU, Fuses, Precharge Circuit, Contactors), which allows for a simple and safe integration into any vehicle.
The modular design of the battery furthermore allows to adapt all key parameters from shape, cooling, voltage, power and energy to perfectly fit for the clients application.
EFT-Battery-1x
1
Turn-Key
The battery pack includes all necessary components (BMS, IMU, Fuses, Precharge, Contactors)
2
Custom Shape
The battery pack can be fully adpated in shape to perfectly fit your application.
3
Modularity
Our modular design allows configuration with different voltages (40V-800V), power levels (up to 200kW) and energy content (1kWh - 200kWh)
Key Parameters
Voltage, Energy, Power:
- Voltage: 12S-192S (40V-800V)
- Energy: 1kWh - 200kWh
- Max continuous discharge: up to 5C
- Max continuous charging: up to 2C
Physical Parameters:
- Operating Temperature Range: -20C to 60C
- Battery Cell Format: 21700
- IP 67 Enclosure
Cooling:
- Cooling Interface Plate on cell bottom
- Option 1: Air Cooling
- Option 2: Liquid Cooling
Included Components:
- BMS (Battery Management System)
- IMD (Insulation Monitoring Device)
- Contactors
- Precharge
- Fuses
Interfaces:
- HV Power Connector
- Communication Connector (CAN)
- Charging Connector (optional)
For more information:
