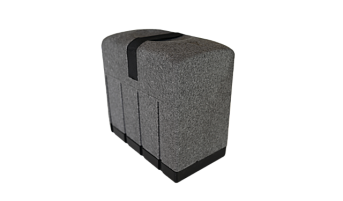

EFT-BATTERY-900
Summary
The EFT-Battery-900 is a fully certified and industrialized battery platform for advanced UAV applications. The NATO based supplychain makes this battery fully NDAA compliant. The battery delivers exceptional energy density at 271 Wh/kg enabling extended flight times and increased payload capacity for demanding aerial tasks.
Application: UAVs: Battery-Electric, under 25 kg.
DOWNLAODS: Datasheet
Specifications
configuration
8S3P
Nominal capacity
33.15 Ah
Pack voltage
20.38 V - 33.6 V
energy density
271 Wh/kg
cycle life
500
max charge
3C cont
Cells
Amprius SA08
Weight
3.33 kg
Dimensions
156 x 87 x 178 mm
Energy
902 Wh
Temperature
-20 °C to 75 °C
Max discharge
166A cont (5C)
265A peak (30s) (8C)
Features
- UN38.3/CE
- NDAA
BMS
Cell Balancing, Temperature Sensing, SOC, SOH, MOSFET Switches
Heating Foil
Preheating from -10 °C to +10 °C in 10 min
Compliance

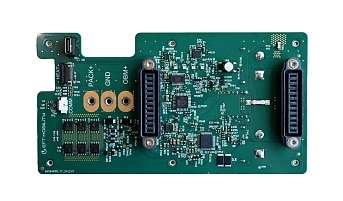

EFT-BMS-14
The EFT-BMS-14 (Battery Management System) is designed as a modular BMS platform that monitors and controls our UAV battery packs. It includes all relevant monitoring functions as well as control functionality.
configuration
- 6 S - 14 S
sensors
- Temperature
- Current
- Voltage
communication protocols
- UART
- CAN 2.0
- DroneCAN
weight
- 23g
Voltage
- 15 V - 60 V
operating temperature
- -30 °C to 80 °C
functions
- SoC (State of Charge)
- SoH (State of Health)
- SoP (State of Power)
- Heating Foil Control
- Integrated MOSFETs
- Data Logging on MicroSD card
- Update via USB C
- LED SoC Indicator
