EFT-BATTERY-CUSTOM
The new standard for UAV batteries - Tailored to your need.
Summary

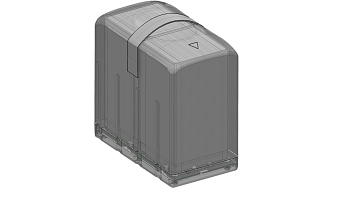

The EFT-Battery-Custom is a modular, turn-key battery platform for advanced UAV applications.
The modular design of the battery allows to adapt all key parameters regarding power, energy, interfaces and communication to perfectly fit for the clients needs.
DOWNLAODS: Datasheet
Specifications
configuration
6 S - 14 S
Energy density
Up to 300 Wh/kg
operating temp.
-20 ºC to 75 ºC
cells
Any available cells
Pack voltage
15 V - 60 V
power density
Up to 5 kW/kg
cycle life
Up to 1000
Features
- UN 38.3/CE
- NDAA
BMS
Cell Balancing, Temperature Sensing, SOC, SOH, MOSFET Switches
Heating Foil
Preheating from -10 °C to +10 °C in 10 min
Compliance
Our Methods
Step 1 - Defining your system requirements
You will fill out a list of core requirements for your battery. We will help you define the ones you are not certain about.
Step 2 - Your custom battery based on our proven design
We use our modular and pre-certified designs to build upon. We customize the battery cell configuration, attachment points and BMS features for you.
Step 3 - Quick turnaround and fully compliant
You will receive your first battery pack samples in record time. We following take care of the official compliance and transitioning them into series production.
EFT-BMS-14

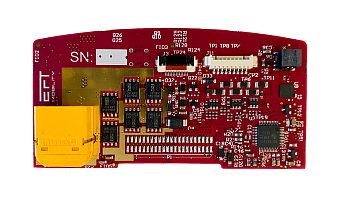

The EFT-BMS-14 (Battery Management System) is designed as a modular BMS platform that monitors and controls our UAV battery packs. It includes all relevant monitoring functions as well as control functionality.
configuration
- 6 S - 14 S
sensors
- Temperature
- Current
- Voltage
communication protocols
- UART
- CAN 2.0
- DroneCAN
weight
- 23g
Voltage
- 15 V - 60 V
operating temperature
- -30 °C to 80 °C
functions
- SoC (State of Charge)
- SoH (State of Health)
- SoP (State of Power)
- Heating Foil Control
- Integrated MOSFETs
- Data Logging on MicroSD card
- Update via USB C
- LED SoC Indicator
